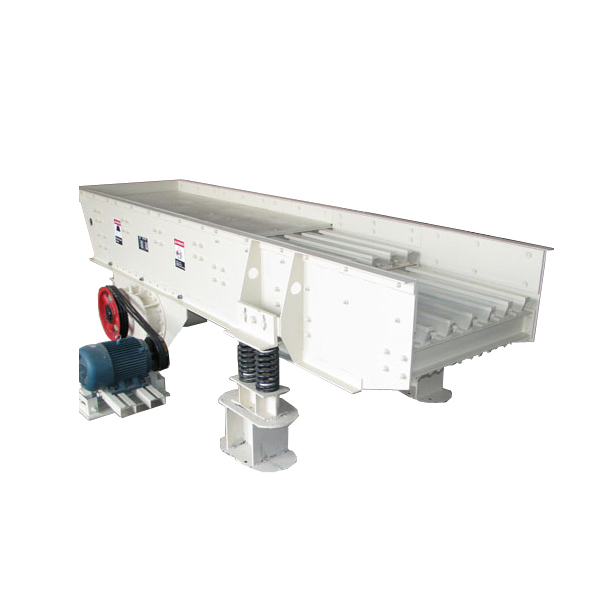

kinglink feeders are vibrating feeders suitable to feed any primary crusher. Obviously they perfectly match to the Kinglink primary crushers, In a primary crushing section as on the rest of the process : reliability comes first. kinglink feeders are heavy duty design and also fit for the mining applications.
Benefits
• Proven reliability;
• High capacity;
• Low Profile Design;
• Options to meet special needs and to optimize the operational cost.
Specifications
ZSW SERIES | ||||||
---|---|---|---|---|---|---|
Model | Chute size (mm×mm) | Max.feed size (mm) | Capacity (t/h) | Power (kw) | Eccentric shaft rotation speed (r/min) | Overall dimension L×W×H (mm) |
ZSW-380×96 | 3800×960 | 450 | 200-300 | 11 | 600-950 | 3900×1700×1400 |
ZSW-490×110 | 4900×1100 | 500 | 300-400 | 15 | 600-850 | 5260×1780×1330 |
ZSW-500×110 | 5000×1134 | 550 | 450-550 | 22 | 600-850 | 5000×1650×1589 |
ZSW-600×130 | 6000×1288 | 600 | 600-700 | 30 | 600-850 | 6000×1804×1623 |
ZSW-600×150 | 6000×1500 | 1000 | 700-800 | 37 | 600-850 | 6000×2016×1636 |
